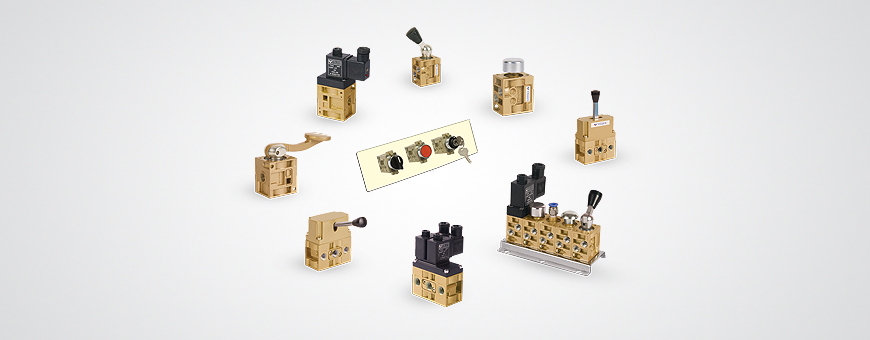

Diaphragm Valves

Diaphragm Valves

Series	Port in BSP	Max. Pressure		Types	Features
		psi	bar
Diaphragm Type	1/8", 1/4", 1/2" (3way) 1/4" (4way)	150	10	3 port, 2 posn & 5 port, 2 posn	Compact design Gang mounting without manifold Poppet design	• Manually Operated • Pilot Operated • Solenoid Operated

Features :
• High flow valves with compact design.
• Simple double diaphragm design ensuring high reliability.
• “No stick” valves and requires no lubrication.
• Faster response.
• Versatile in mounting (base mounted / Panel mounted / Inline mounted).
• Gang mounting facility without manifold.
• Available in manual / pilot / electrically operated versions.
Download Data Sheet
