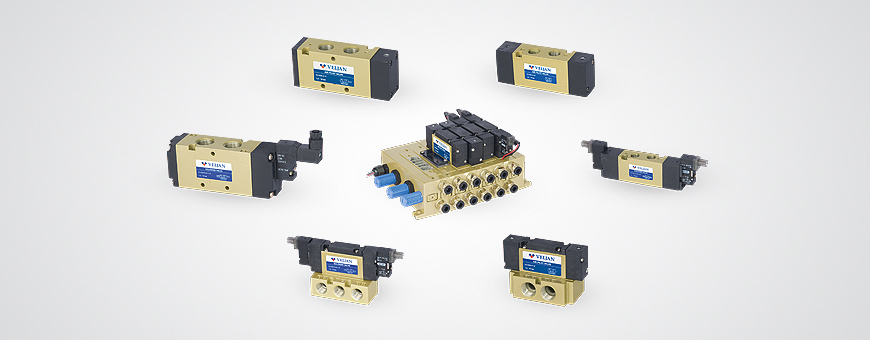

Inline Mounted Valves
| Series |
Port in BSP |
Max. Pressure |
Types |
Features |
|
|
psi |
bar |
|
|
|
| 524 |
1/8", 1/4", 3/8"& 1/2" |
150 |
10 |
5 port, 2 posn & 5 port, 3 posn |
Quick response type High flow Compact design |
• Manually Operated
• Pilot Operated
• Solenoid Operated
(24 V DC, 110 V AC,
220 V AC |
Features :
• Compact , Sleek and high flow valves.
• Spool type design with elastomeric seals.
• 5 port 2 position / 3 position.
• Working pressure range 1.5 to 10 bar.
• Manifold mounted multiple units.
• Available in M5, 1/8”, 1/4”, 3/8” & 1/ 2” port sizes.
• Solenoid pilot operated & Manual operated versions.
• Low power consumption.
