| Specification | |
|---|---|

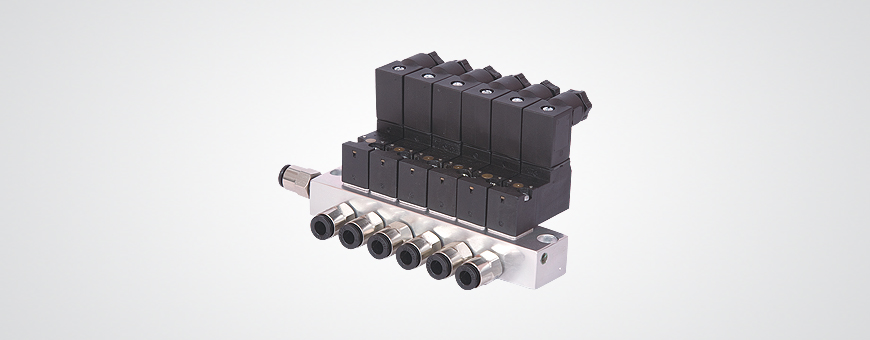

| Series | ILV-750 |
| Port Size | M5 |
| Operation | Direct solenoid actuated |
| Function | 3/2 (3 port 2 position) |
| Medium | Compressed, Filtered air |
| Min Working Pressure | 1.5 bar |
| Response Time | 20 ms |
| Orifice Size | 1 mm |
| Max Working Pressure | 0-10 bar |
| Operating Temp. | 5 to 60°c |
| Lubrication | Not required |
| Manual Override | Push Button (In Built Coil) |
| Coil Insulation | Class - F |
| Voltage | Ac: 220v or 110v / Dc: 24v |
| Power Consumption | Ac: 3VA Dc : 2.5w |
| Permissible Voltage Variation | ±10 % of Rated Voltage |
| Protection Structure | Dust proof |
