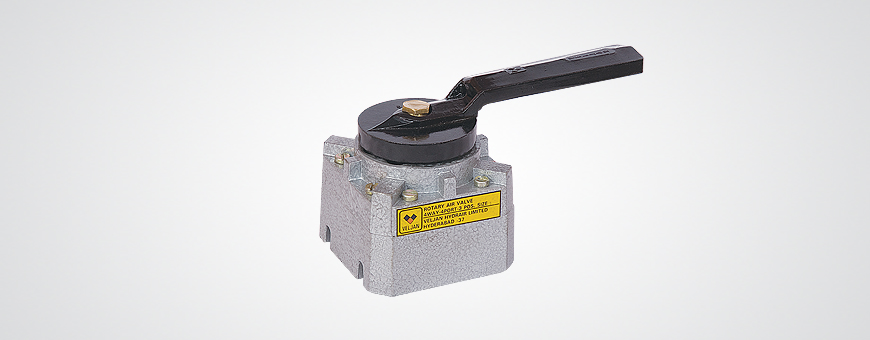

Rotary Air Valve

Rotary Air Valve

F	1/4" BSP	3/8" BSP	1/ 2" BSP	3/4" BSP
B	76 S.Q.	76	115	121
H1	14	14	14	65
H2	86	86	86	140
L	165	165	165	----

• Four way-three position valve designed with aluminum pressure die-cast body.
• Easy panel mounting or Inline mounting
• Detented three position mechanism provides stable positioning.
• Integral moulded rubber disc for no leakage.
• Lapped disc for prolonged trouble free operation.

Economically designed, these valves are ideal for Compressed air line applications requiring rugged manual operations. Handle provides convenient hand grip having clear and ample movement to show well defined position of the valve. In the mid position, all the ports are blocked thereby making these valves most suitable for holding applications. Suitable for control of double acting cylinders and similar applications. Spring detent positioning ensures non drift stable valve position These valves are available in both bottom port and side port types. The mounting arrangement enables either behind the panel or front panel mounting.
